Brief 1 - Evaluation

This brief has helped me gain experience and knowledge in the more practical side of graphic design. I designed and made all of the packaging using materials, equipment and departments within the college that I never have before. I found it very exciting and interesting to re visit skills that I haven't used for a few years, such as sanding, buffing and sawing. It helped me to get hands on with my work which I feel is something I may have perhaps lost touch with through out the last year. Also, it tok me away from the computer and looking at 2D and paper based ideas for a while, which in turn helped to give me a different perspective and refreshing insight into the capabilities within both graphic design and with myself.

Trial and fail was a big part of this project as sometimes I was relying on machinery to accurately cut out the acrylic for the test tube housing and this proved to be very inaccurate. I then had to find other ways to solve this problem and this ended in a longer hand made process taking more time and making my schedule fall behind. In the end however, this made the better result and finish for my product.

I feel if I had more time I would have done more initial research and development for this brief however, the short time scale that I was left with made me have to think on my feet and design as I was creating in some places. I am very happy with the overall result and I think this is because every design decision that was made had reasoning and thought behind it. The product solves the problem in the brief and I could see it on a shelf in a high end retail environment.

Module Submission Form

Collaboration Form

Brief 3 - Fashion Yearbook Boards

Brief 4 - Photography Collaboration Boards

Brief 5 - Menu Design Boards

Brief 1 - Useful Packaging Boards

Brief 6 - X Project Boards

Brief 6 - Fashion Branding Boards

Brief 2 - 17 Boards

Friday, 25 May 2012

Brief 1 - Crafting and Making

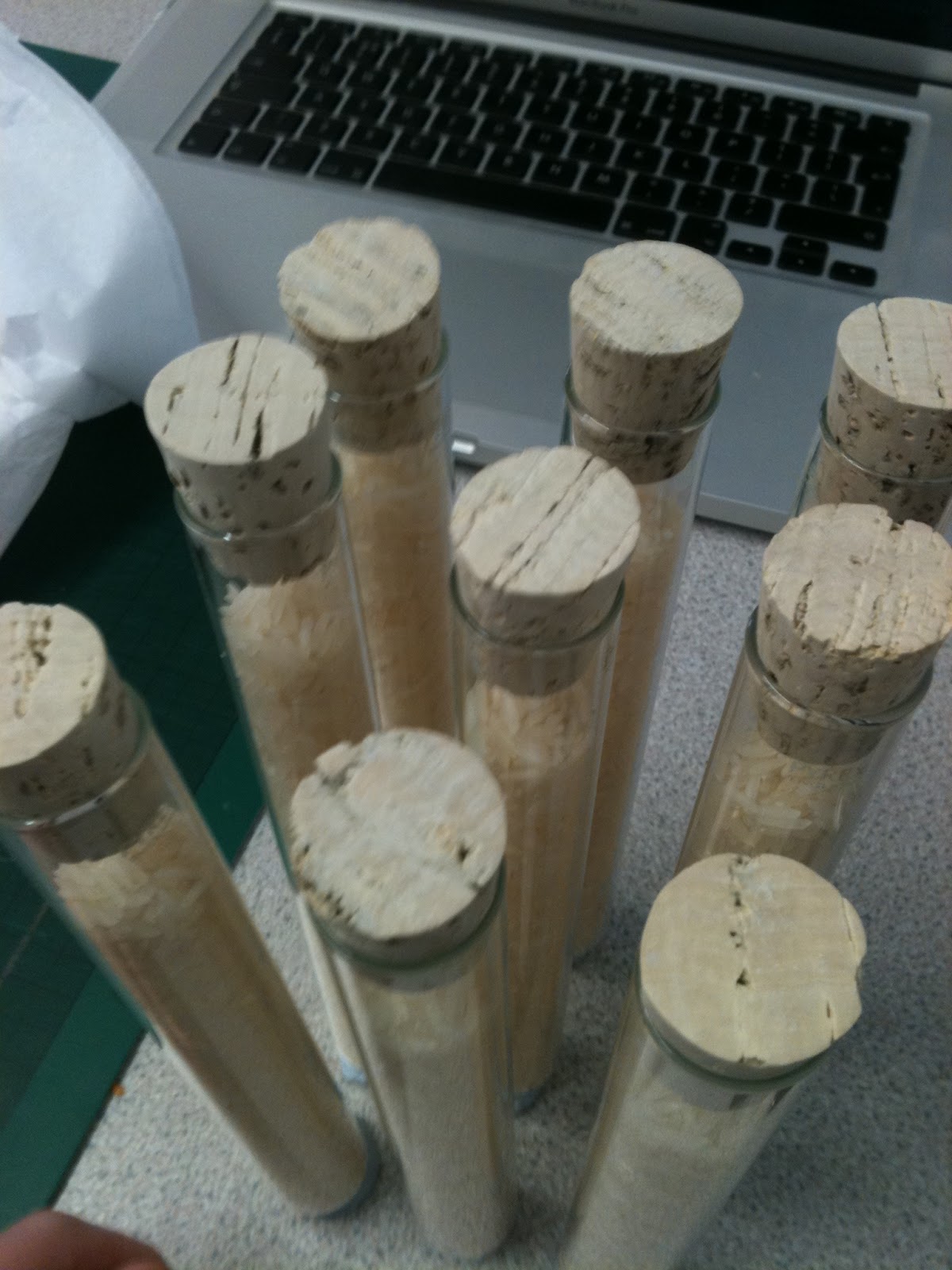

So the test tubes arrived with the cork stoppers. They look as I want them to with the rice inside.

Then I needed to work out the size of the test tube box. I stood the test tubes up as they would stand in the packaging to get measurements.

I then tested out the size of the holes to make sure that the tubes would fit through.

The nest step was to laser cut out the sections to house the test tubes...

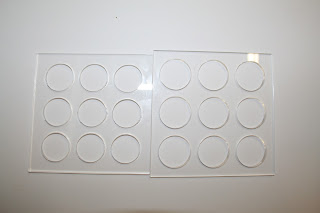

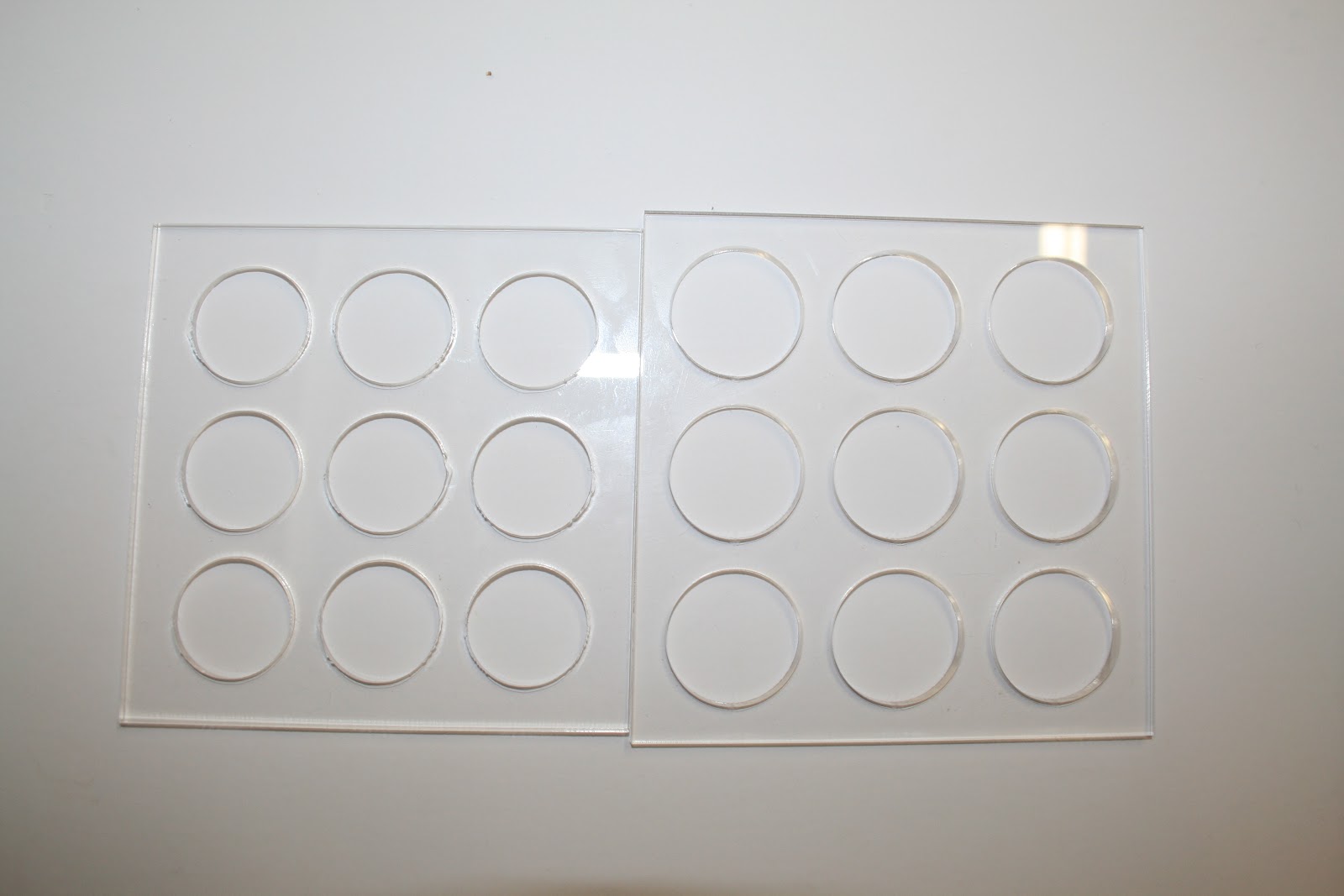

This is the net that I used on the laser cutter with acrylic. The dimensions of the square lids are 10mmx10mm and the height is 190mm. With the acrylic being 3mm thick Whilst making the net I needed to take into account the sides that needed to be shorter because of the 3mm thickness.
My first attempt was a bit of a disaster. The reason I found out later was that the laser cutters weren't aligned properly so when I was trying to cut out a rectangle it came out more like a trapezium. This of course wouldn't work for the packaging because it would all be wonky and not stand at a right angle.

On my first day in metalwork with my acrylic pieces, the tutor, Liz and myself were confused as to why the sides weren't at right angles, so I spent the whole of this day measuring, filing, sanding and buffing up the acrylic to make sure all the sides were at right angles and that all the shapes match up together. After 7 hours in the workshop and finally ready to glue the sides together we realised that the box just wouldn't fit together. This was a combination of the bad laser cutter and filing and sanding meaning that the pieces weren't perfectly matched....

I was advised by Liz to cut out the pieces again on the laser cutter...at which point we didn't yet know that the laser cutter wasn't aligned properly. So my next attempt on the laser cutter was obviously not a success, so I seeked help from the woodwork technician, who firstly solved the mystery of the wonky sides and then kindly said he would cut them out using a HUGE saw in the workshop. After he had cut out the pieces they were all perfectly squared and all I had to do was wet and dry them with 1000 grain sand paper and buff them to a shine.

The sides were glued together with an acrylic based glue that bonds the sides together to made a solid structure. Because the sides were transparent it was very important when gluing to be as neat as possible because everything would be visible. For little mistakes acetone was rubbed over the glue to get rid of it before it dried.

The acrylic was held together with masking tape whole it dried. This took approx. 5hours until I took the maskin tape off.

The next stage was to use vinyl to stick to the acrylic in the shape fo the branding logo.
Below is the printed sheet cut on the vinyl cutter. Some of the type was too small to be cut properly (the instructions of how to cook) however the logo came out fine.

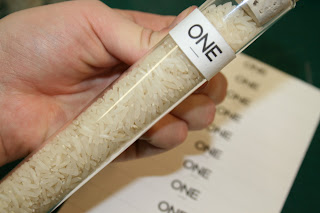

I cut out the ares of the vinyl that I wanted to use and stuck masking tape over the top. I then placed it where I wanted it to go and used a scalpel to carefully stick the vinyl to the acrylic. I also stuck a smaller logo onto all of the test tubes.

 Before a final choice was made about the vinyl I look at using the paper that I would be using for the packaging to see which I preferred. I thought the vinyl in the end looked more sophisticated and clean cut.

The next stage was to make the box that housed the test tube tray. I wanted to use a creamy/white stock with simple logo and instructions. I chose to print onto water colour paper because it has a nice off white colour and also has a nice texture and grain to it.

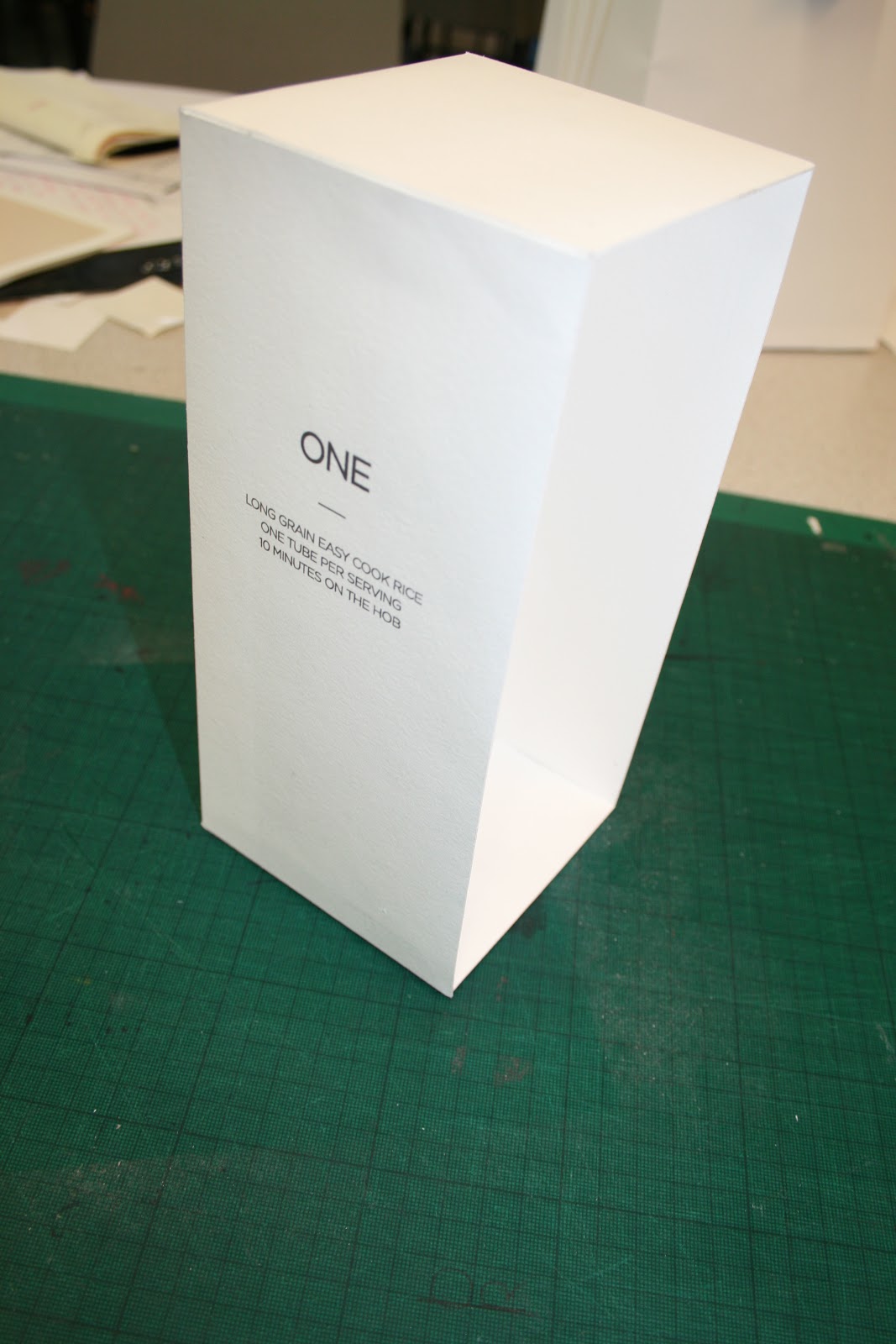

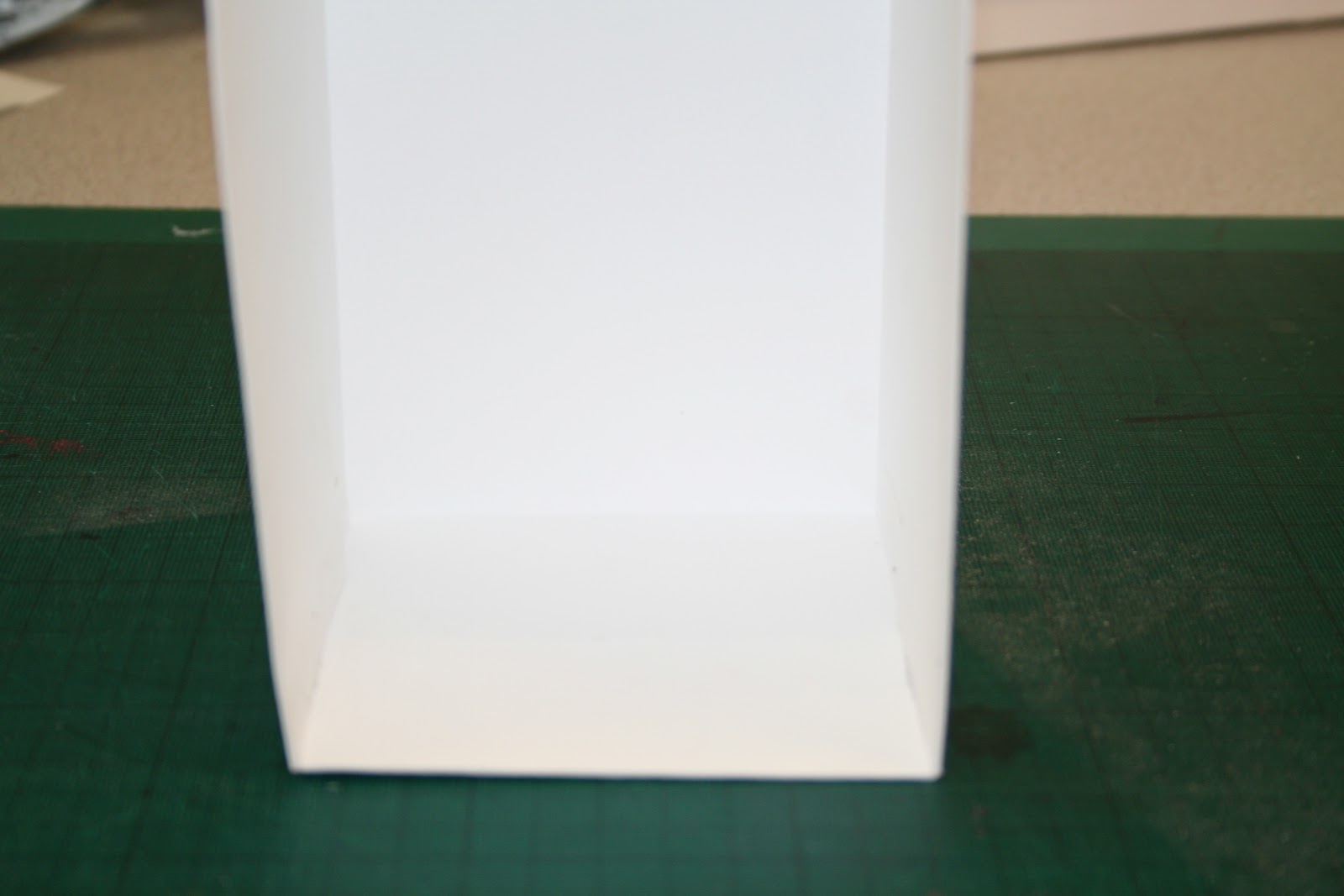

My first attempt didn't work. I measured the net incorrectly. I forgot to measure the area where the test tubes and corks stick out of the top, instead I used the measurements for the acrylic box net. This meant that the net wasn't high enough. In an effort to learn from this mistake I still cut out the net and just extended the necessary sides. This helped me to visualise and see what needed to be changed next time around. It also made me notice that the logo was actually on the wrong side!

This stage helped me decide that I wanted the edges of the box to have folded in flaps to make the card thicker and stronger. Also placing the acrylic bos inside made  me aware that it wasn't very clear from the front what the product was. I therefore decided to make a label to go on the front.

Second attempt at the packaging:

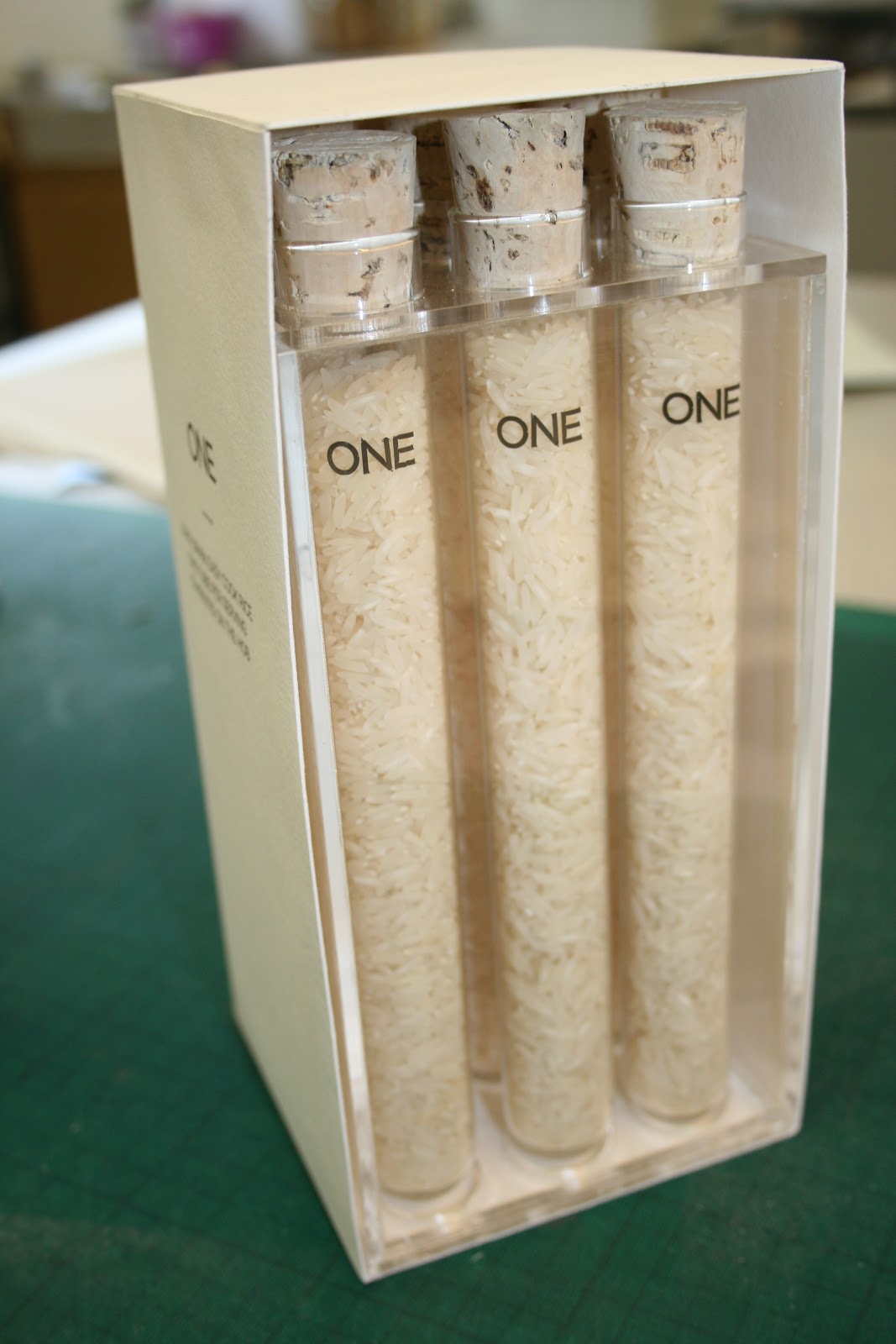

The test tubes fit perfectly inside.
